>>> Machine Features and Functions

1. Seven servo motors independently control seven workstations, including cam, wire feeding, and crimping, making machine adjustment convenient and quick (the number of axes can be customized for increase or decrease).

2. The transmission method of directly connecting a servo motor to a precision planetary gear reducer ensures high precision, long lifespan, and high stability, overcoming the shortcomings of low stability found in other transmission methods.

3. Thirdly, the tool holder adopts guide rail sliders, which maintain high precision and high rigidity over a long period of time.

4. Utilizing professional CNC computer control with a touch screen for point-and-click programming, making programming easier.

5. The machine is equipped with an automatic detection function. When there is an abnormal wire feeding or the needle is crimped and broken, the machine will automatically stop, emit an alarm sound, and light up a red warning light, thus avoiding the production of scrap products when no one is monitoring the machine.

Sixth, two sets of highly sensitive probes can precisely control the angle and length of the product.

7. Suitable for producing hinge torsion springs, clip torsion springs, simple torsion springs, inductive coils, etc.

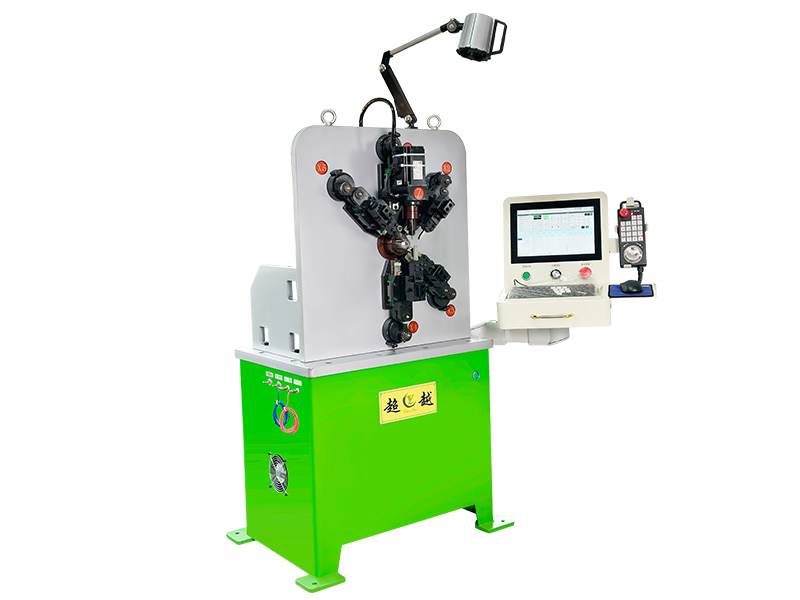

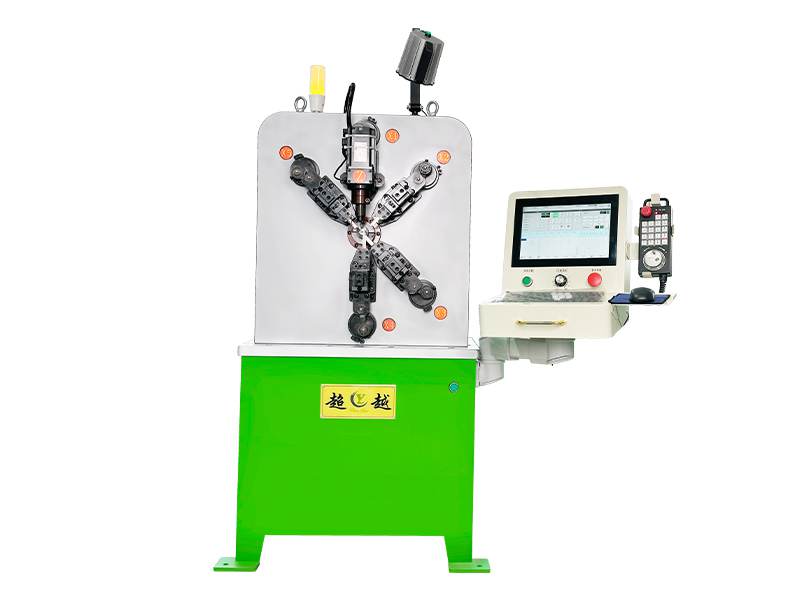

Technical parameters of CY-CNC20 torsion spring machine: Model: CNC20 torsion spring machine

Number of axes: 7 axes

Wire diameter range: 0.5-2.0mm

Cam servo motor power: 750W*5 sets

Wire feeding servo motor power: 400W

Curling servo motor power: 1000W

Curling stroke: 0-38mm

Slider stroke: 0-30mm

Wire feeding length: 0-60mm

Maximum production speed: 100 PCS

Probes: 2 sets

Operating power supply: 220-380V

Machine dimensions: (W x H x D) 1200x1500x710mm

Machine weight: 550Kg
