Optical Sorting for Springs

100% dimensional and surface inspection for springs, with automatic NG separation.

Suitable for:

✓ Compression springs      ✓ Torsion springs      ✓ Extension springs      ✓ Shaped springs
Request a Free Quote

Spring Types We Inspect

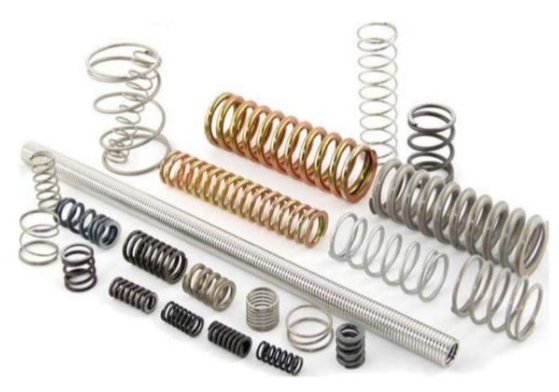

Compression Spring

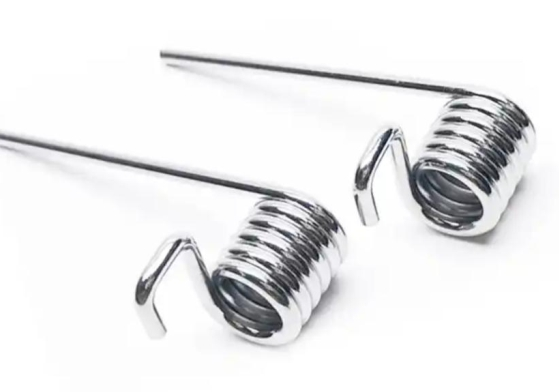

Torsion Spring


Extension Spring

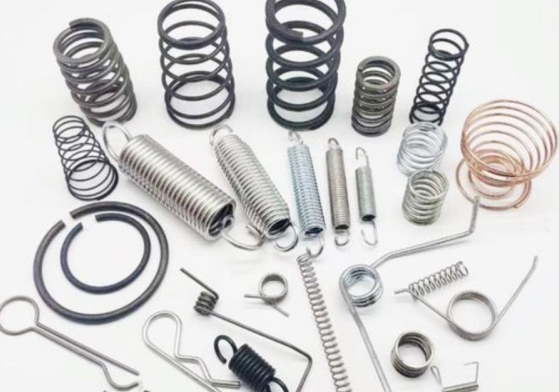

Shaped Spring

Detectable Defects


Scratches


Rust & Corrosion


Deformation


MissDeformationing Coil


Mixed Springs


OD / Length Error


Cracks


Coil Gap Error


Open Ends


Surface Oil & Dirt

Machine Parameters


Model TL-CCD Series
Detection disc diameter 600mm/800mm
Equipment size 1280*1280*1980
Equipment weight 900KG
Voltage 220VAC (standard)
Frequency 50HZ/60HZ
Power 4KW
Air pressure 0.5-0.8Mpa
Feeding method Belt and rail conveyors
Speed ±500Pcs/min
Accuracy ≥0.002mm
Accessories can be added It can be equipped with vertical feeding machines, climbing machines, storage bins, etc., and can be connected to packaging and baling machines.
Computer Standard I7 industrial-grade computer (AI algorithm equipped with NVIDIA high computing power graphics card)
Software platform All support UNITECHO's three self-developed software algorithm platforms: UZVISION vision platform + AI algorithm platform UIDI + AI defect generation software UIDG

Compatible Equipment

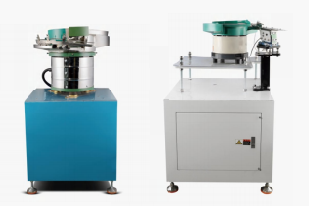

Vibratory Bowl Feeder

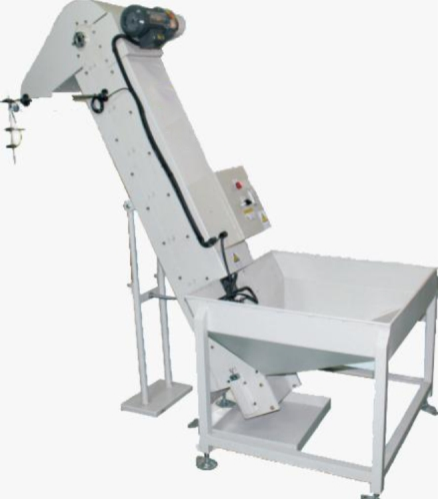

Automatic Feeding System


Spring Forming Machine


Vision Inspection Machine

Send us your springs for a free test.

Request a Free Quote
