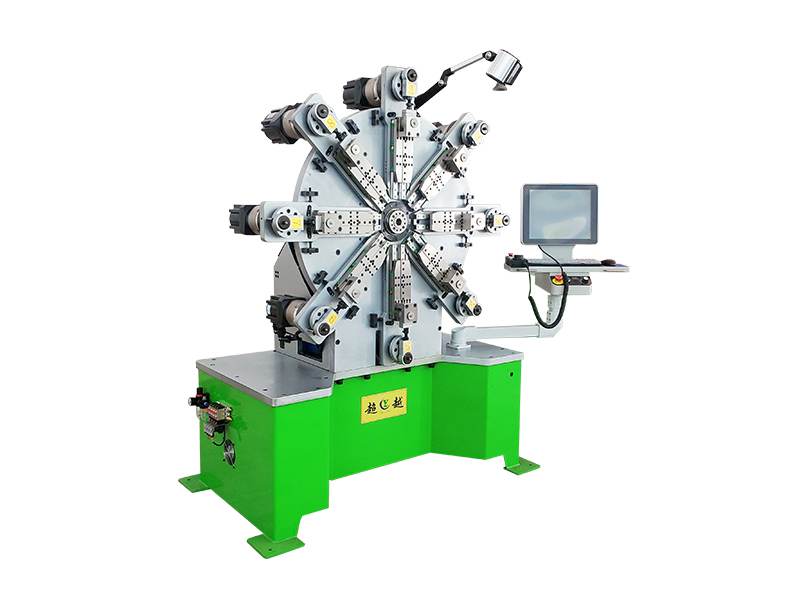

>>> Machine features and functions:

1. The servo motor independently controls eight slider arms, a core shaft, and a wire feeding shaft, with a total of 10 axes as standard configuration.

2. Secondly, the transmission method of directly connecting a servo motor to a precision planetary gear reducer ensures high precision, long lifespan, and high stability, overcoming the shortcomings of low stability found in other transmission methods.

3. Thirdly, the tool holder adopts parallel dual-guide rail sliders, ensuring high precision and high rigidity over a long period of time.

4. High-precision manufacturing process for the gears of the wire feeding box, coupled with a fully gear-driven wire transfer structure, results in faster and more stable speed.

5. Scope of application: Applicable to the production of special-shaped springs, paper clips, extension springs, torsion springs, flat springs, and spiral springs, etc.

>>> Machine technical parameters:

Wire Diameter Range : φ 2.0-5.0mm

Number of axes : 10 axis

Maximum Feed Length : unrestricted

Number of wire feed wheels : 4 Correct

Wire feeding servo motor : 7.0KW

Slider servo motor : 1.2KW*8

Rotary servo motor : 1.0KW

Curling servo motor : 1.0KW

Total Power : 18.6KW

power supply : 380V

Depth*Width*Height : 1250*1900*2070

Machine weight :  2000kg
