Double torsion spring

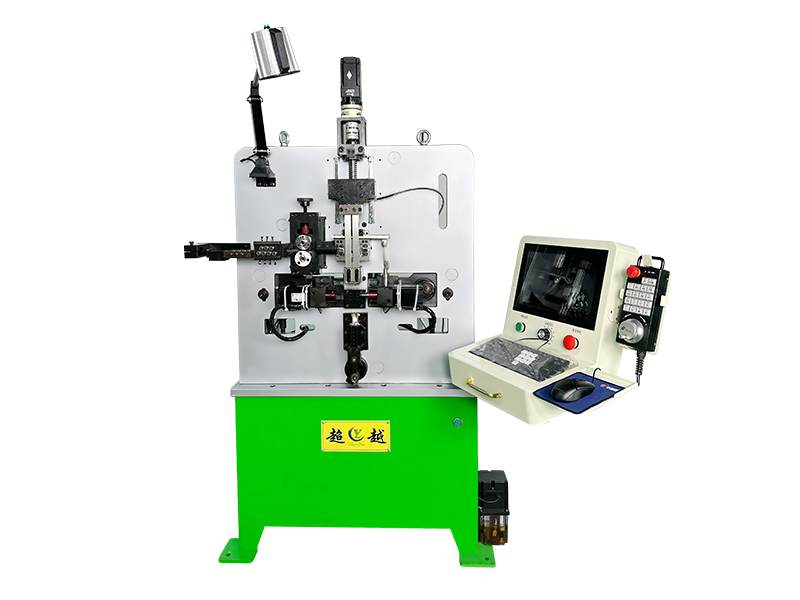

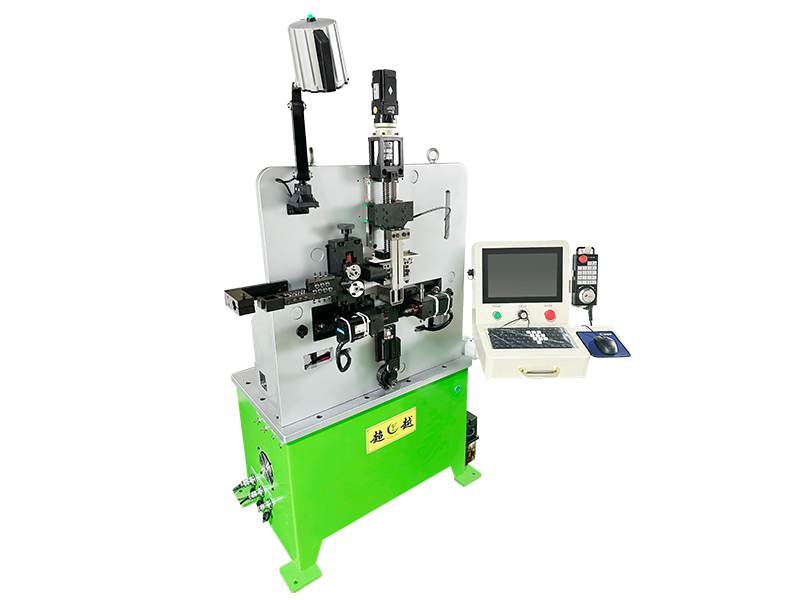

The CY-CNC double torsion spring machine, equipped with a high-precision CNC computer system and servo motor control, is specifically developed for the production of hinge double torsion springs. Its unique design ensures that the production speed of both bent and straight double torsion springs is the same. The machine is capable of producing round and square wires, among other hinge double torsion springs. The machine features 9 axes, each controlled by a separate servo motor, offering advantages such as fast production speed, precise wire feeding length, and simple and convenient debugging.

Technical Specifications

Model: CY-CNC Double Torsion Spring Machine

Number of axes: 9 axes

Wire diameter range: 1.0-2.0mm

Maximum wire feeding length: Unlimited

Maximum production speed: 100 units/minute

Cylinder probe: 1 set

X1 servo power: 1.2kw

X2 servo power: 400w

X3 servo power: 400w

X4 servo power: 400w

X5 servo power: 750w

X6 servo power: 400w

X7 servo power: 1.0kw

X8 servo power: 1.0kw

Y servo power: 750w

Operating power supply: 220-380V

Machine dimensions: 1300x1050x1850mm

Machine weight: 1200kg


double torsion spring
