double torsion spring

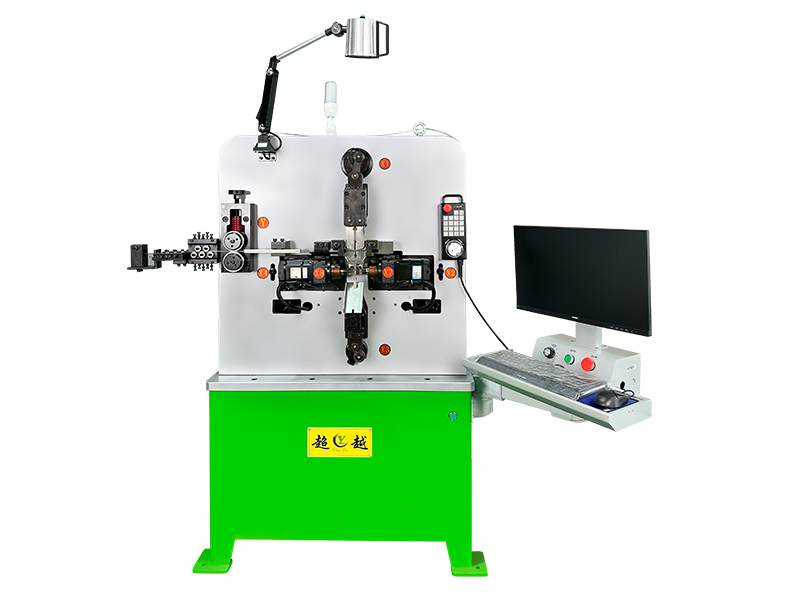

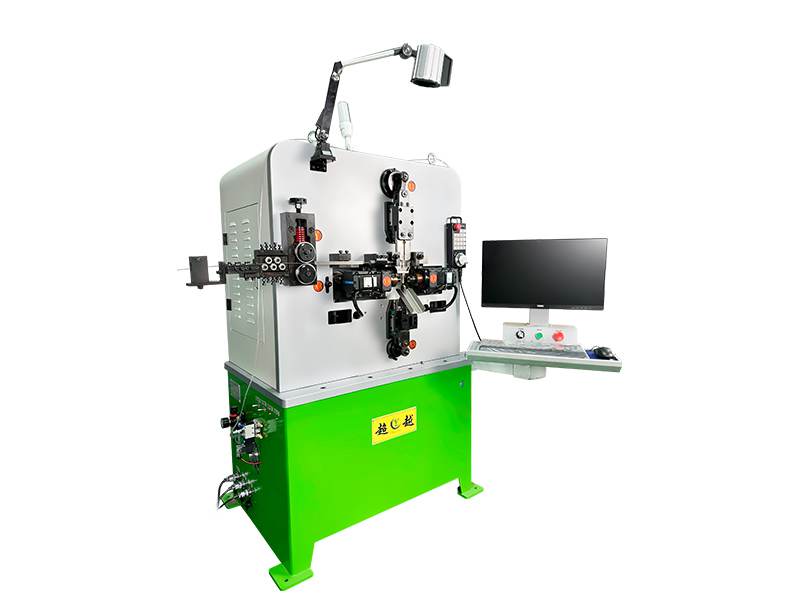

The CY-CNC double torsion spring machine adopts a high-precision CNC computer system and servo motor control. It is a machine specially developed for hinge double torsion springs. Its unique design enables the production speed of bent and straight legs of double torsion springs to be the same. It can produce round and square wires and other hinge double torsion springs. The machine has 9 axes, each controlled by a separate servo motor, and has the advantages of fast production speed, precise wire feeding length, and simple and convenient debugging.
Model: CY-CNC Double Torsion Spring Machine
Number of axes: 9 axes
Wire diameter range: 1.0-2.0mm
Maximum wire feeding length: Unlimited
Maximum production speed: 100 units/minute
Cylinder probe: 1 set
X1 servo power: 1.2kw
X2 servo power: 400w
X3 servo power: 400w
X4 servo power: 400w
X5 servo power: 750w
X6 servo power: 400w
X7 servo power: 1.0kw
X8 servo power: 1.0kw
Y servo power: 750w
Operating power supply: 220-380V
Machine dimensions: 1300x1050x1850mm
Machine weight: 1200kg
